1. Product Overview

RuggedCom® RuggedSwitch® 10 RSG2300 Installation Guide Rev 110

• Convenient port status indicators conveying Link/Activity, Duplex, or Speed via the Mode push-

button (toggles between the three display modes)

• System reset via the Mode push-button (if held for 5 seconds)

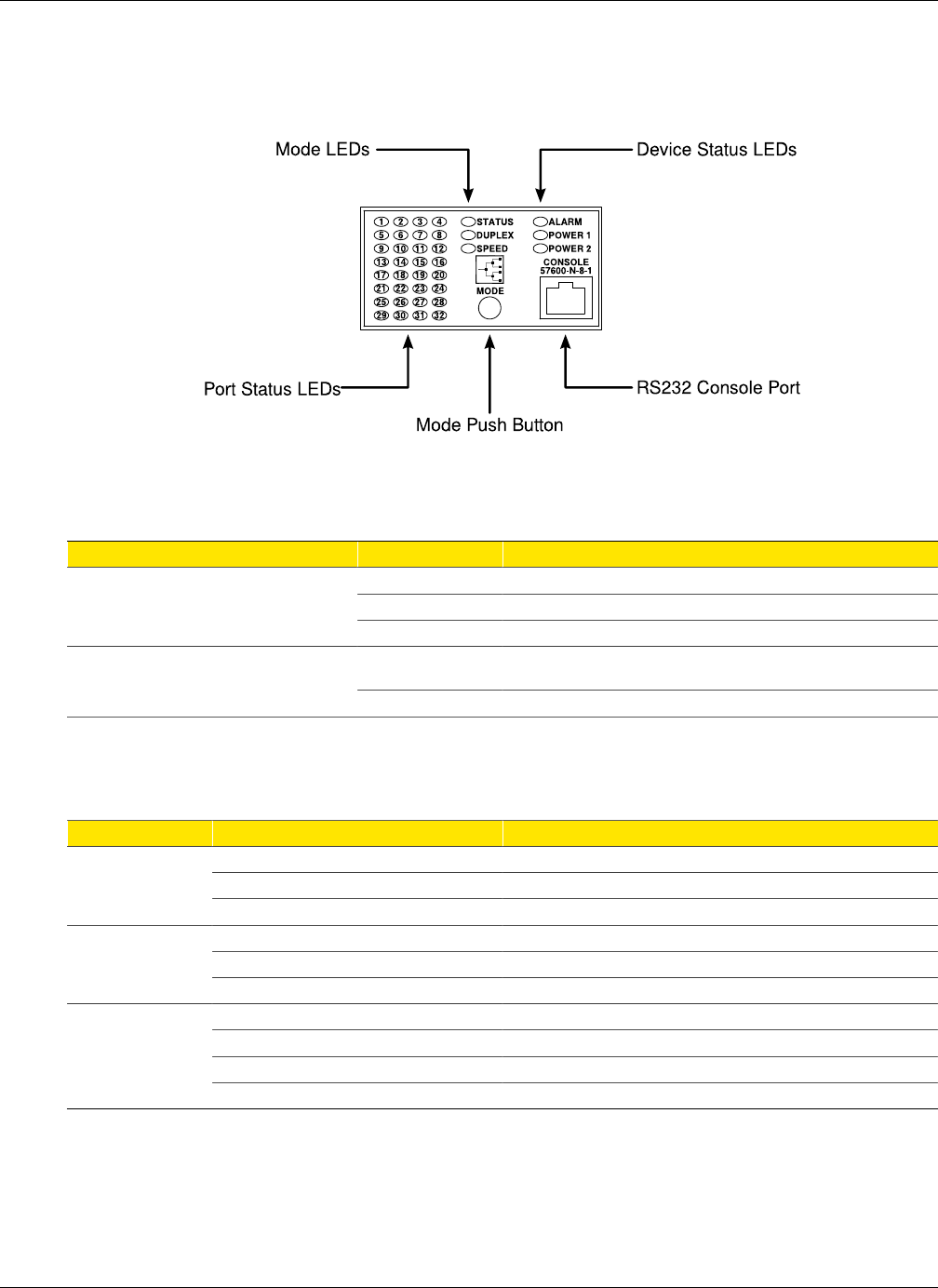

Figure 1.1. RSG2300 LED Display Panel

The device status LEDs provide a quick visual indication of the operational status of the unit. The

following table lists the possible LED colors and their corresponding descriptions.

LED Color Description

Green Power supply operating normally

Red Power supply failure

Power 1 / Power 2

Off No power supply installed

Red An alarm condition exists – log in to the web management

interface or to the CLI to determine the alarm code

Alarm

Off No alarms exist

Table 1.1. LED Display – Device status LED behavior definition

The port LEDs operate in three display modes: Status, Duplex, and Speed. To set the display

mode, push the Mode button.

Mode Color Description

Green (Solid) Link detected

Green (Blinking) Activity

Status

Off No link

Green (Solid) Full-Duplex operation

Orange (Solid) Half-Duplex operation

Duplex

Off No link

Green (Blinking) 1000Mb/s

Green (Solid) 100Mb/s

Orange (Solid) 10Mb/s

Speed

Off No link

Table 1.2. Port Status LED behavior definition
